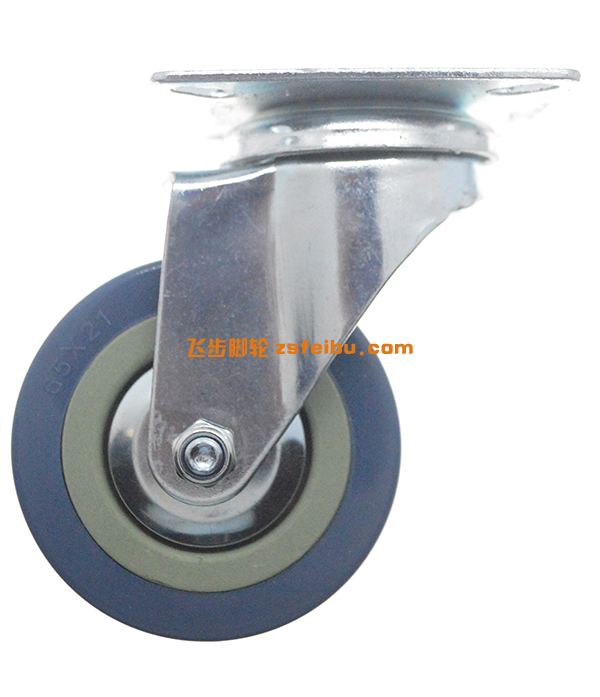

灰胶脚轮

model	wheel material	diameter [mm]	wheel width [mm]	rotation radius	installation height	base plate size		mounting holes		bore [mm]	load capacity [kg]
model	wheel material	diameter [mm]	wheel width [mm]	rotation radius	installation height	fixed	swivel	fixed	swivel	bore [mm]	load capacity [kg]
2"	pvc	50	17	45	71	68×47	50×50	53×33	35×35	6.5	35
2.5"	pvc	65	21	63	91	100×58	65×65	81×40	48×48	6.5	40
3"	pvc	75	21	65	101	100×58	65×65	81×40	48×48	6.5	50
4"	pvc	100	27	84	128	100×58	76×76	81×40	53×53	8.3	60
5"	pvc	125	27	97	154	100×58	76×76	81×40	53×53	8.3	70
