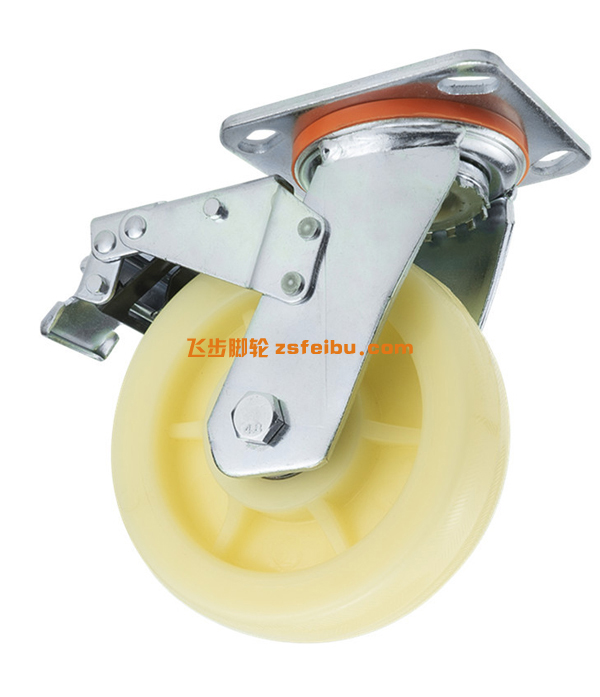

重型脚轮

specification	caster material	diameter [mm]	wheel width [mm]	installation height [mm]	rotation radius [mm]	base plate size [mm]	mounting holes [mm]	hole diameter [mm]	load capacity [kg]
specification	caster material	diameter [mm]	wheel width [mm]	installation height [mm]	rotation radius [mm]	base plate size [mm]	mounting holes [mm]	hole diameter [mm]	pp	pa	np	pu	pvc	tpr	pl
4 inch	pp,pa,np,pu,pvc,tpr,pl	100	50	143	84	113×98	84×71	11.2	250	300	250	300	250	250	310
5 inch	pp,pa,np,pu,pvc,tpr,pl	125	50	163	102	113×98	84×71	11.2	275	340	275	340	275	275	350
6 inch	pp,pa,np,pu,pvc,tpr,pl	150	50	190	120	113×98	84×71	11.2	300	365	300	365	300	300	375
8 inch	pp,pa,np,pu,pvc,tpr,pl	200	50	240	143	113×98	84×71	11.2	320	385	320	385	320	320	395
note: pp=polypropylene, pa=nylon, np=rubber, pu=polyurethane, pvc=polyvinyl chloride, tpr=thermoplastic rubber, pl=cast iron wheel.
