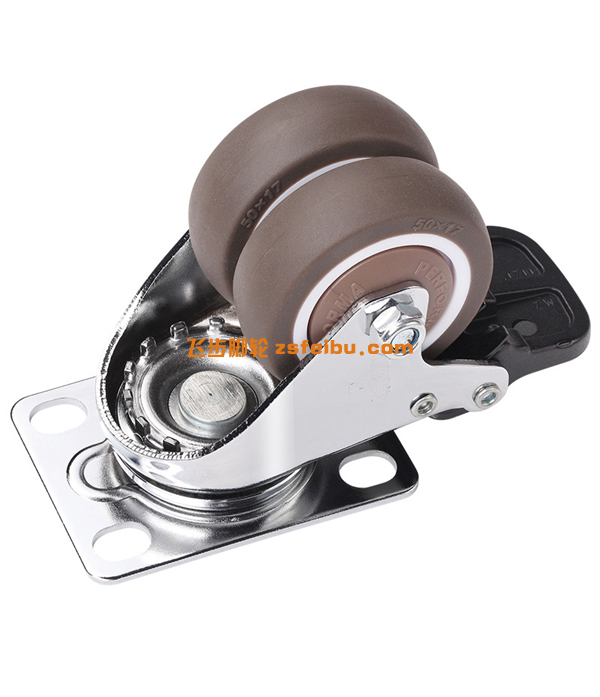

轻型脚轮

specification	caster material	diameter	wheel width	installation height	turning radius	base plate size	mounting holes	screw rod specification	hole diameter	load capacity [kg]
1 inch	tpr	25	13	37.5	47.5	39×33	30×24	m8/m10*25	4.2	11
1.25 inch	tpr	32	13	44.5	49	39×33	30×24	m8/m10*25	4.2	16
1.5 inch	tpr	38	17	52	59.5	46×39.5	36×28	m8/m10*25	5.2	22
2 inch	tpr	50	17	64	62.5	46×39.5	36×28	m8/m10*25	5.2	27
2 inch	tpr	50	23	74	49	60×49	45×30 46×35	m8/m10*25	6.3	45
2.5 inch	tpr	63	23	88	58.5	71×58	54×35 55×42	m8/m10*25	8.3	50
3 inch	tpr	75	23	100	65.5	71×58	54×35 55×42	m8/m10*25	8.3	55
for detailed parameters, please call: 0760-22127002
