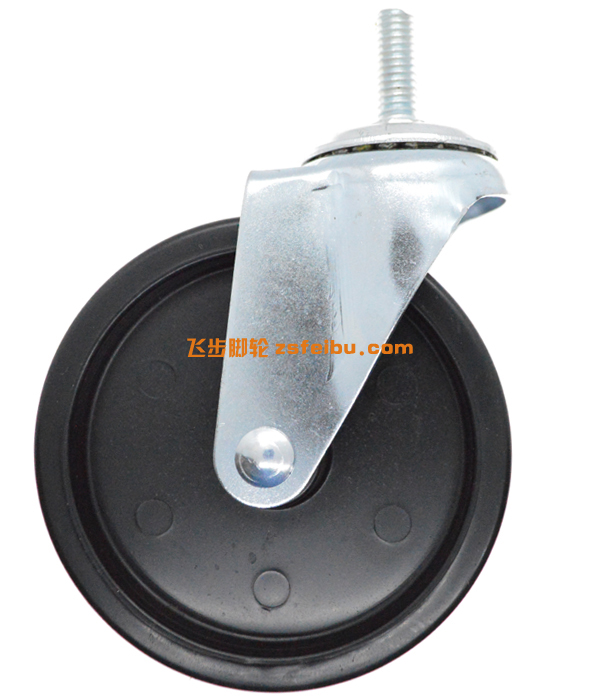

轻型脚轮

specification	caster material	diameter [mm]	wheel width [mm]	installation height	rotation radius	base plate size [mm]		installation hole [mm]		threaded rod specification [mm]	hole diameter [mm]	load capacity [kg]
specification	caster material	diameter [mm]	wheel width [mm]	installation height	rotation radius	swivel	rigid	swivel	rigid	threaded rod specification [mm]	hole diameter [mm]	pp	pa	np	pu	pvc	tpr	pl
1	pp,pa,np,pu,pvc,tpr,pl	25	13	33	29	38×32	38×20	30×24	29	m6/m8*15	4.2	10	12	10	12	11	11	13
1.25	pp,pa,np,pu,pvc,tpr,pl	32	13	36	29	38×32	38×20	30×24	29	m6/m8*15	4.2	15	18	15	18	17	17	19.5
1.5	pp,pa,np,pu,pvc,tpr,pl	40	17	50	40	47×39	46×25	35×28	36×15	m6/m8/m8*15	5	20	24	20	24	22	22	26
2	pp,pa,np,pu,pvc,tpr,pl	50	21	63	46	59×47	58×40	45×35	45×25	m10/m12*25	6.2	30	36	30	36	33	33	39
2.5	pp,pa,np,pu,pvc,tpr,pl	65	25	84	56	70×58	70×47	53×41	55×28	m10/m12*25	8.5	35	42	35	42	38	38	45
3	pp,pa,np,pu,pvc,tpr,pl	75	25	93	62	70×58	70×47	53×41	55×28	m10/m12*25	8.5	45	54	45	54	49	49	58
4	pp,pa,np,pu,pvc,tpr,pl	100	25	116	73	85×72	85×72	61×54	61×54	m10/m12*25	8.5	55	66	55	66	60	60	71
5	pp,pa,np,pu,pvc,tpr,pl	125	25	148	103	92×64	92×64	78×45	78×45	m10/m12*25	8.5	90	108	90	108	99	99	117
notes: pp=polypropylene, pa=nylon, np=rubber, pu=grinding polyester, pvc=polyvinyl chloride, tpr=thermoplastic rubber, pl=pig iron wheel.
